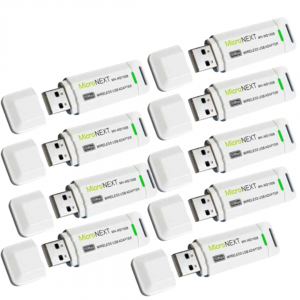

The MicroNEXT MN-WD150B Wireless N USB Adapter complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g, and IEEE 802.11b standards. Wireless transmission rates can reach up to 150Mbps.
The USB adapter with internal Omni-directional antennas works well with other 11g and 11n protocol wireless products
This product can also simultaneously operate bandwidth intensive applications using a lot of bandwidth which are sensitive to interruption. When using multiple bandwidth intensive applications, the most sensitive of these applications can be given priority over the others to be allocated more bandwidth in order to assure quality.
Features
Features
Complies with IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b standards
Provides USB 2.0 Hi-Speed interface
20/40MHz interoperable channels dramatically increase performance
Up to 150Mbps data transfer rate in 802.11n mode of operation
Supports Wi-FI Protected Security (WPS), supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X
Simple Configuration and monitoring
Supports Roaming technology, guaranteeing efficient wireless connections.
Simple and easy to use user manageable software for a relaxed easy configuration of wireless client.
Compatible with 802.11g and 11b equipment, Intel Centrino Compatibility tested
Supports Windows 2000/XP/Vista OS
Internal Antenna
Specifications
Standard IEEE 802.11n(draft 2.0), IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Interface USB2.0
Frequency Range 2.4GHz-2.4835GHz
Radio Data Rate 11n: 150/135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g: 54/48/36/24/18/12/9/6M(adaptive)
11b: 11/5.5/2/1M(adaptive)
Channel 1~11 (US, Canada) ; 1~13 (Europe) ; 1~14 (Japan)
Spread Spectrum DSSS
Modulation BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Transmission Distance Indoor up to 100m , outdoor up to 300m (it is limited in an environment)
Receive Sensitivity@PE 11n: -68dBm@10% PER
11g: -68dBm@10% PER
11b: -85dBm@8% PER
Transmit Power 17dBm
Antenna plus 2dBi
LED Indicator Status
Data Security WPA; 64/128-bit WEP; TKIP/AES
Environment Operating Temperature: 0?~40? (32?~104?)
Operating Humidity: 10%~90% non-condensing
Dimensions 58mm*20mm*10mm
Operation System WIN2000/XP/VISTA/Win7
Package Contents
9 x 802.11n Wireless USB Adapter
9 x User Manual
9 x Software CD
|
|||||
